Product Features
Features

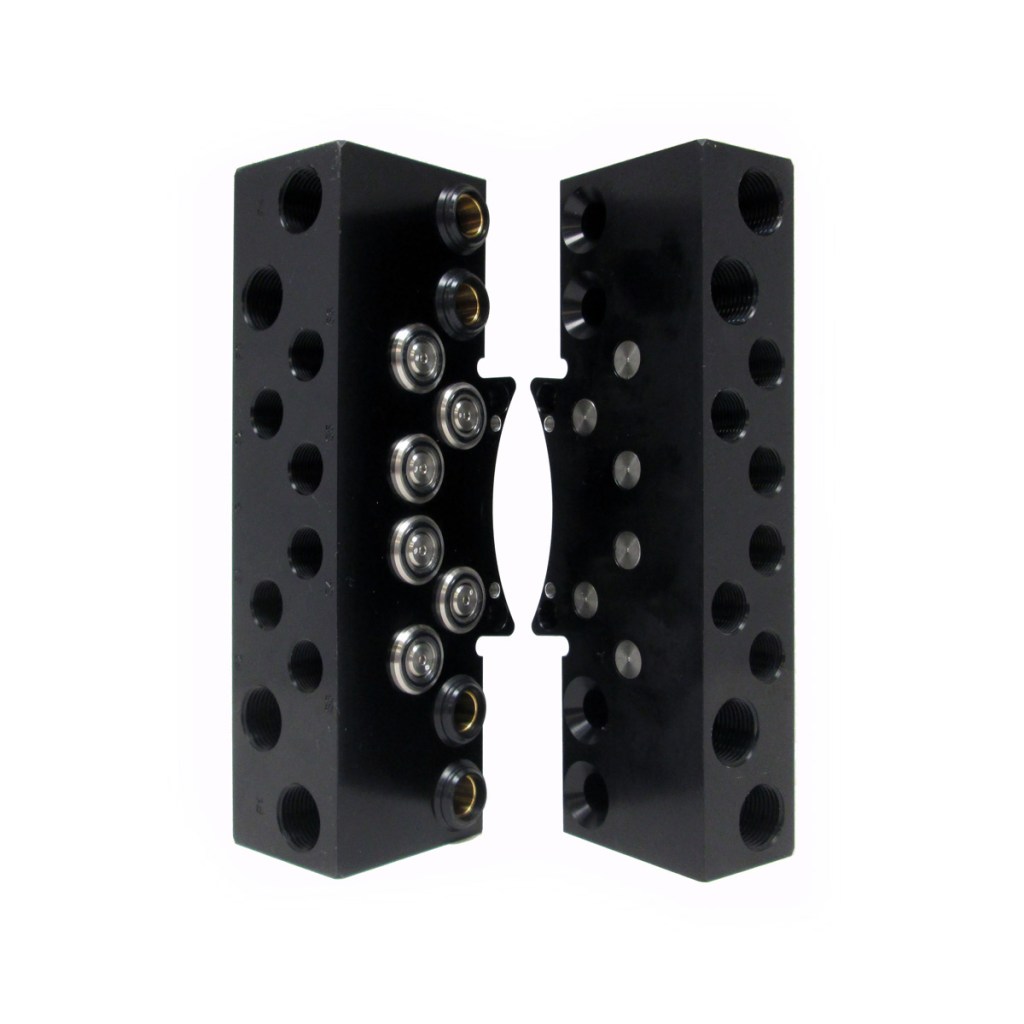

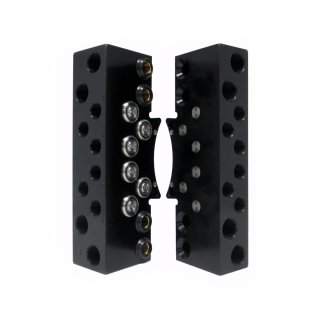

- Provides air service from the Master to the Tool plates.
- (6) G3/8 self-sealing ports and (4) G1/2 pass-through ports.
- 100 psi (6.9 bar) maximum.
- (6) self-sealing ports do not support vacuum service.
Materials
- Anodized aluminum housings
- Stainless steel, Nitrile, and PVC valve components
| Specification | Value |
|---|---|
| Flow Rating | 1.6 for G3/8 ports S1 – S6, 4.0 for G1/2 ports P1 – P4 |
| Master Side Weight | 1.77 kg |
| Tool Side Weight | 1.27 kg |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Utility Type | Air |
- Filter by Part Number
- 9121-AN5-M
- 9121-AN5-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-AN5-M | Pneumatic Module, (6) G3/8 self-sealing ports and (4) G1/2 pass-through ports – Master side |
|
|
|
9121-AN5-T | Pneumatic Module, (6) G3/8 self-sealing ports and (4) G1/2 pass-through ports – Tool side |
|
