Product Features
Features

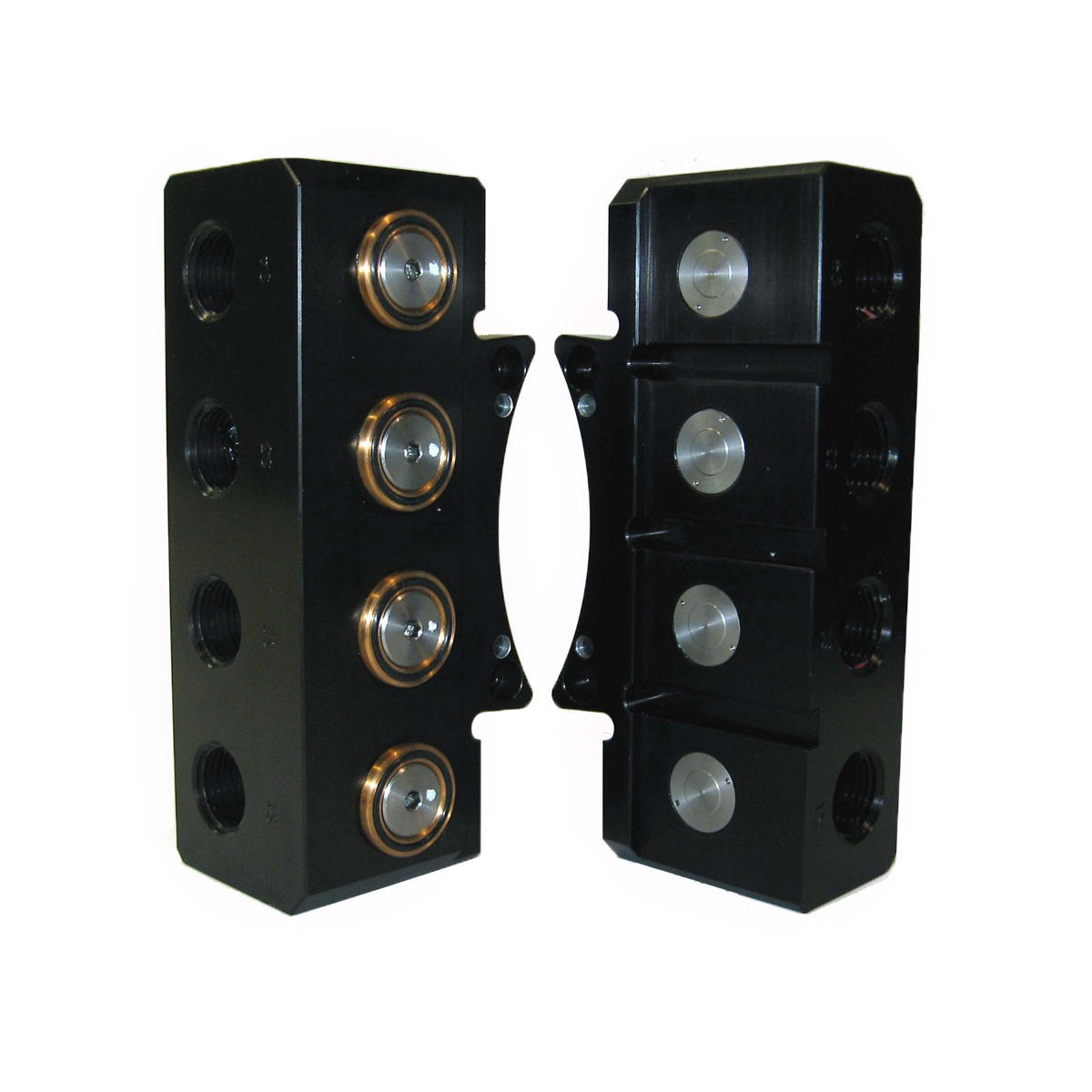

- Provides air service from the Master to the Tool plates.
- 1/2 NPT ports.
- (4) self-sealing ports (AP2 Master and Tool side).
- (4) pass-through ports (AP8 Tool side).
- 100 psi (6.9 bar) maximum.
- Not for vacuum service.
Materials
- Anodized aluminum housings
- Stainless steel valve components
- Nitrile seals
| Specification | Value |
|---|---|
| Flow Rating | 3.1 |
| Master Side Weight | 1.22 kg |
| Tool Side Weight | 0.86 kg |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Utility Type | Air |
| Download | Description |
|---|---|
| 9121-AP2-T | Pneumatic tool module with (4) u00bdu201d NPT self-sealing ports |
- Filter by Part Number
- 9121-AP2-M
- 9121-AP2-T
- 9121-AP8-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-AP2-M | (4) 1/2 NPT self-sealing ports – Air Module only – Master side |
|
|
|
9121-AP2-T | (4) 1/2 NPT self-sealing ports – Air Module only – Tool side |
|
|
|
9121-AP8-T | (4) 1/2″ NPT Pass-through Ports – Air Module only – Tool Side |
|
