Product Features
Features

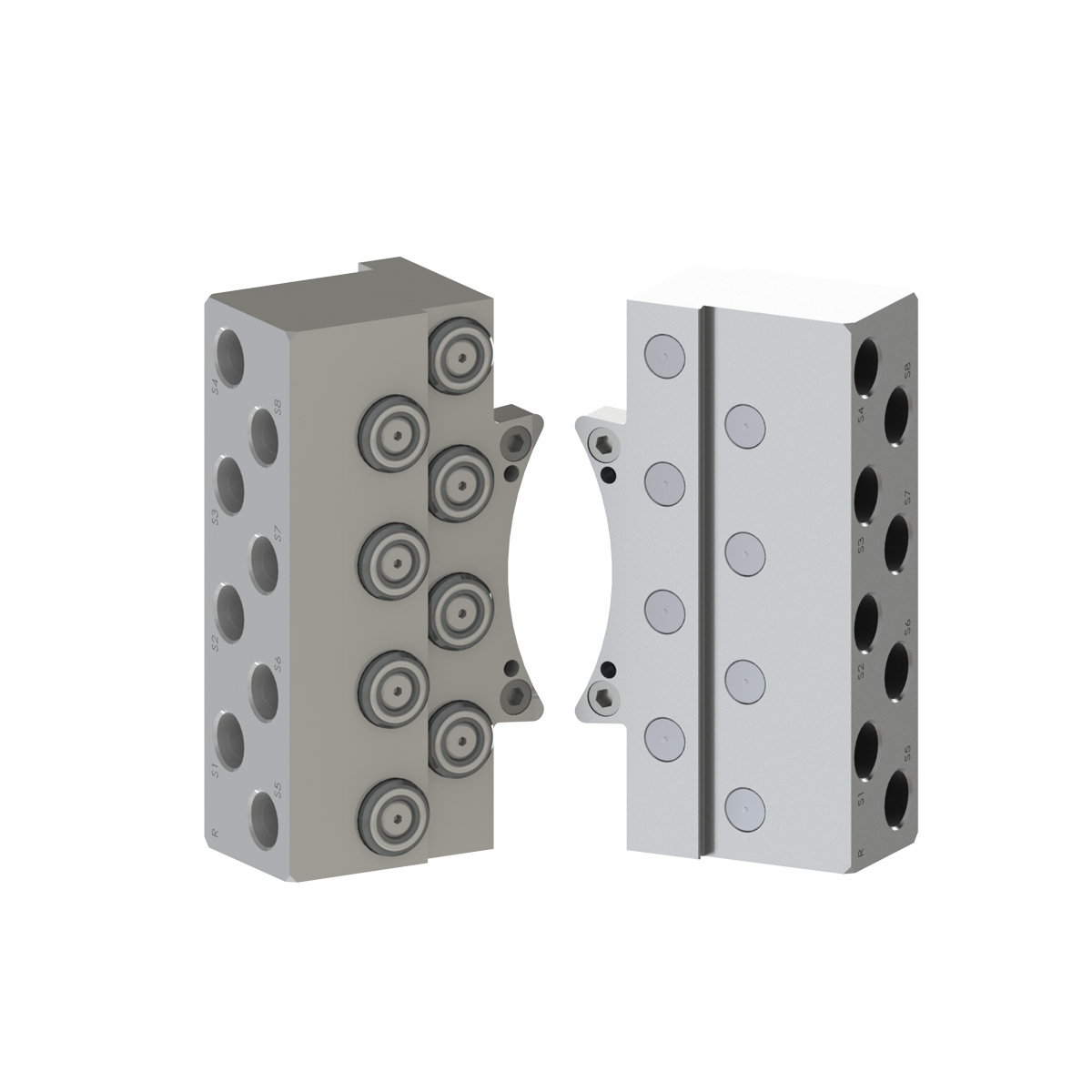

- Provides air service from the Master to the Tool plates.
- Rc 3/8 (BSPT) ports.
- AR4 Master – (8) self-sealing ports.
- 100 psi (6.9 bar) maximum.
- Not for vacuum service.
Materials
- Aluminum housings
- Stainless steel valve components
- Nitrile seals
| Specification | Value |
|---|---|
| Flow Rating | 1.6 |
| Master Side Weight | 1.31 kg |
| Tool Side Weight | 0.93 kg |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Utility Type | Air |
- Filter by Part Number
- 9121-AR4-M
- 9121-AR4-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-AR4-M | Pneumatic Module with (8) Rc 3/8 (BSPT) self-sealing ports – Master side |
|
|
|
9121-AR4-T | Pneumatic Module with (8) Rc 3/8 (BSPT) self-sealing ports – Tool side |
|
