Product Features
Features

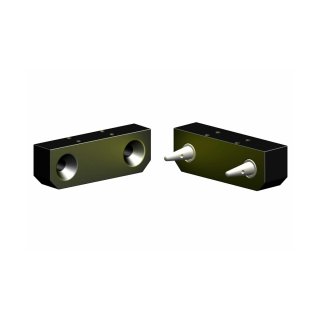

- Gross Alignment Module
- Provides for up to 11mm misalignment capability.
- Only recommended for QC-100.
Materials
- Aluminum Master housing
- Tool steel Tool housing
- Hardened stainless steel pin components.
| Specification | Value |
|---|---|
| Master Side Weight | |
| Tool Side Weight | |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Type | Alignment Modules |
| Download | Description |
|---|---|
| 9120-GA2-M | Gross Alignment Module Master |
| 9120-GA2-T | Gross Alignment Module Tool |
- Filter by Part Number
- 9120-GA2-M
- 9120-GA2-T
| Part Number | Description | ||
|---|---|---|---|
 |
9120-GA2-M | Gross Alignment Module – Master side |
|
|
|
9120-GA2-T | Gross Alignment Module – Tool side |
|
