Product Features
Features

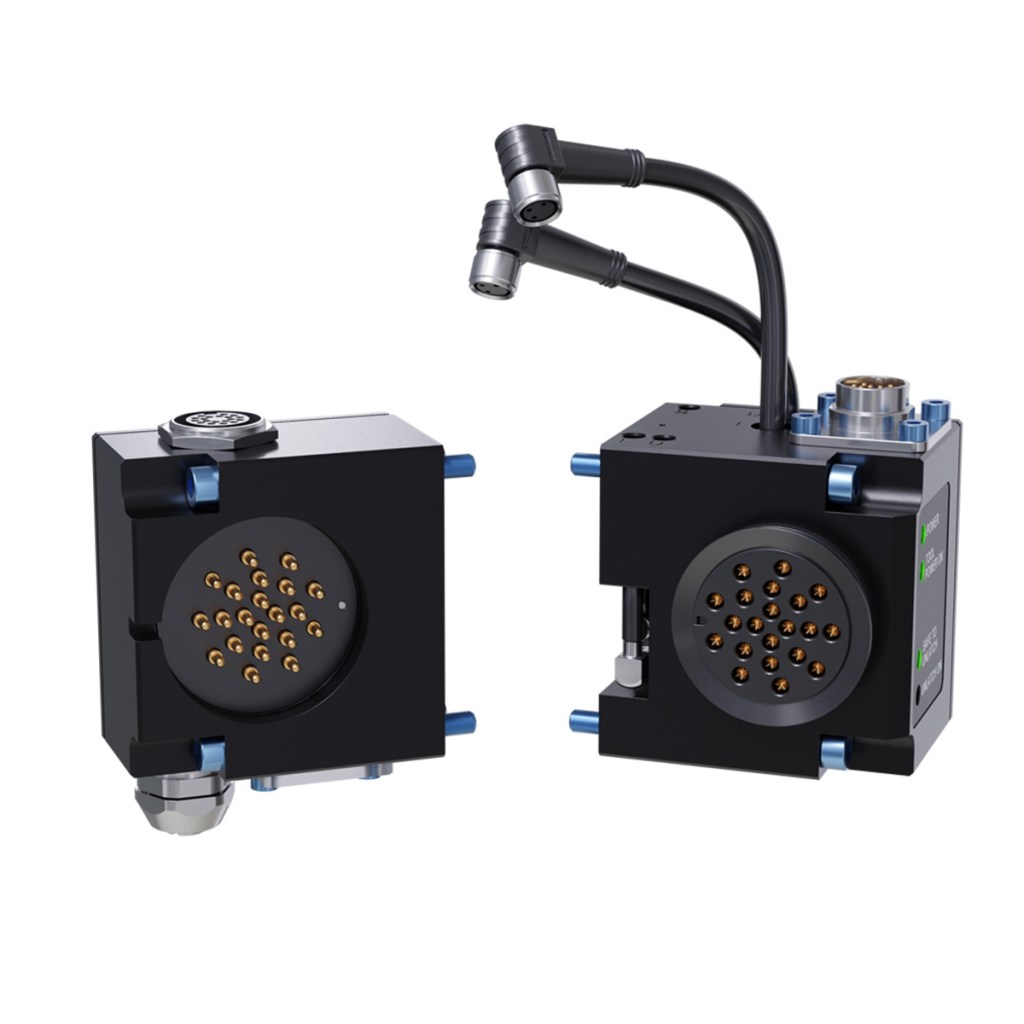

- CV14 Safety & Control Module, compatible with QC-29 through QC-110 Tool Changers.
- Safety is built in. Tool Stand Interlock (TSI) protects against accidental uncoupling.
- Integrated pneumatic valve, air fittings, and lock/unlock air tubing are included for easy integration.
- Tool-ID for end-effector verification, up to 16 tools.
- M16 19-Pin connector for tool changer monitoring and pass-through power and signals.
- Easy to use LEDs communicate tool changer status.
- “Wired” module for direct connection to lock/unlock sensors on tool changer.
- Arc Prevention (Patented) to protect electrical contacts for longer life
Materials
- Aluminum housings/covers
- Precious-metal-plated contacts
- Nitrile seals
- Delrin pin block
| Specification | Value |
|---|---|
| Electrical Rating |
Input – 24V (+20%/-10%) / 4A Spare Pass-Through Signals – <50V / 3A Tool ID – 30V / 100mA |
| Master Side Weight | 0.28 kg |
| Tool Side Weight | 0.20 kg |
| Number of Total Pins | 19 |
| Pins Description | |
| Operational Temperature Range | 0 °C to 48.9 °C |
| Signal Type |
| Download | Description |
|---|---|
| 9120-CV14NRR-M | Control/Valve Module, Discrete I/O, NPN, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
| 9120-CV14PWE-M | Control/Valve Module, Discrete I/O, PNP, Straight Connectors on L/U Sensor Cables, 1/8 BSPP Fittings, Master Side |
| 9120-CV14NRE-M | Control/Valve Module, Discrete I/O, NPN, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPP Fittings, Master Side |
| 9120-CV14PRN-M | Control/Valve Module, Discrete I/O, PNP, Right Angle Connectors on L/U Sensor Cables, 1/8 NPT Fittings, Master Side |
| 9120-CV14NWN-M | Control/Valve Module, Discrete I/O, NPN, Straight Connectors on L/U Sensor Cables, 1/8 NPT Fittings, Master Side |
| 9120-CV14PRE-M | Control/Valve Module, Discrete I/O, PNP, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPP Fittings, Master Side |
| 9120-CV14NRM-M | Control/Valve Module, Discrete I/O, NPN, Right Angle Connectors on L/U Sensor Cables, 1/8 NPT Fittings, Master Side |
| 9120-CV14PWN-M | Control/Valve Module, Discrete I/O, PNP, Straight Connectors on L/U Sensor Cables, 1/8 NPT Fittings, Master Side |
| 9120-CV14NWR-M | Control/Valve Module, Discrete I/O, NPN, Straight Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
| 9120-CV14NRN-M | Control/Valve Module, Discrete I/O, NPN, Right Angle Connectors on L/U Sensor Cables, 1/8 NPT Fittings – Master Side |
| 9120-CV14NWE-M | Control/Valve Module, Discrete I/O, NPN, Straight Connectors on L/U Sensor Cables, 1/8 BSPP Fittings, Master Side |
| 9120-CV14PRR-M | Control/Valve Module, Discrete I/O, PNP, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
| 9120-CV14PRM-M | Control/Valve Module, Discrete I/O, PNP, Straight Connectors on L/U Sensor Cables, 1/8 NPT Fittings, Master Side |
| 9120-CV14PWR-M | Control/Valve Module, Discrete I/O, PNP, Straight Connectors on L/U Sensor Cables, 1/8 BSPT Fittings |
- Filter by Part Number
- 3405-1230003-01
- 8600-440N-S32023-01
- 3405-2230007-01
- 8600-440N-S32023-01-M12-1.04
| Part Number | Description | ||
|---|---|---|---|
 |
3405-1230003-01 | Fitting, Straight, 1/8UniX4mm Tube |
|
 |
8600-440N-S32023-01 | AB S22 Sipha Sensor/S20 Transponder Pair, 3m cable, Pigtail End |
|
 |
3405-2230007-01 | Fitting, Elbow, 1/8Uni -oring x 5/32 (4mm) Tube |
|
 |
8600-440N-S32023-01-M12-1.04 | Sipha 440N-S32023 Sensor and Actuator with 1.04 meter long cable overmolded with Turck 5-Pin Male A-Coded M12 connector. |
|
- Filter by Part Number
- 9120-CV10N-T
- 9120-CV10P-T
- 9120-CV14NRE-M
- 9120-CV14NRM-M
- 9120-CV14NRN-M
- 9120-CV14NRR-M
- 9120-CV14NWE-M
- 9120-CV14NWN-M
- 9120-CV14NWR-M
- 9120-CV14PRE-M
- 9120-CV14PRM-M
- 9120-CV14PRN-M
- 9120-CV14PRR-M
- 9120-CV14PWE-M
- 9120-CV14PWN-M
- 9120-CV14PWR-M
| Part Number | Description | ||
|---|---|---|---|
|
|
9120-CV10N-T | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV10P-T | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NRE-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NRM-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NRN-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NRR-M | Control/Valve Module, Discrete I/O, NPN, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
|
|
|
9120-CV14NWE-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NWN-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14NWR-M | Control/Valve Module, Discrete I/O, NPN, Straight Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
|
|
|
9120-CV14PRE-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14PRM-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14PRN-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14PRR-M | Control/Valve Module, Discrete I/O, PNP, Right Angle Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
|
|
|
9120-CV14PWE-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14PWN-M | Compact Discrete Control/Valve Module with Locked/Unlocked Sensor Cables, Tool Stand Interlock (TSI), 0-F Tool ID. |
|
|
|
9120-CV14PWR-M | Control/Valve Module, Discrete I/O, PNP, Straight Connectors on L/U Sensor Cables, 1/8 BSPT Fittings, Master Side |
|
