Product Features
Features
- 10 pins.
- 5 Amp/24V.

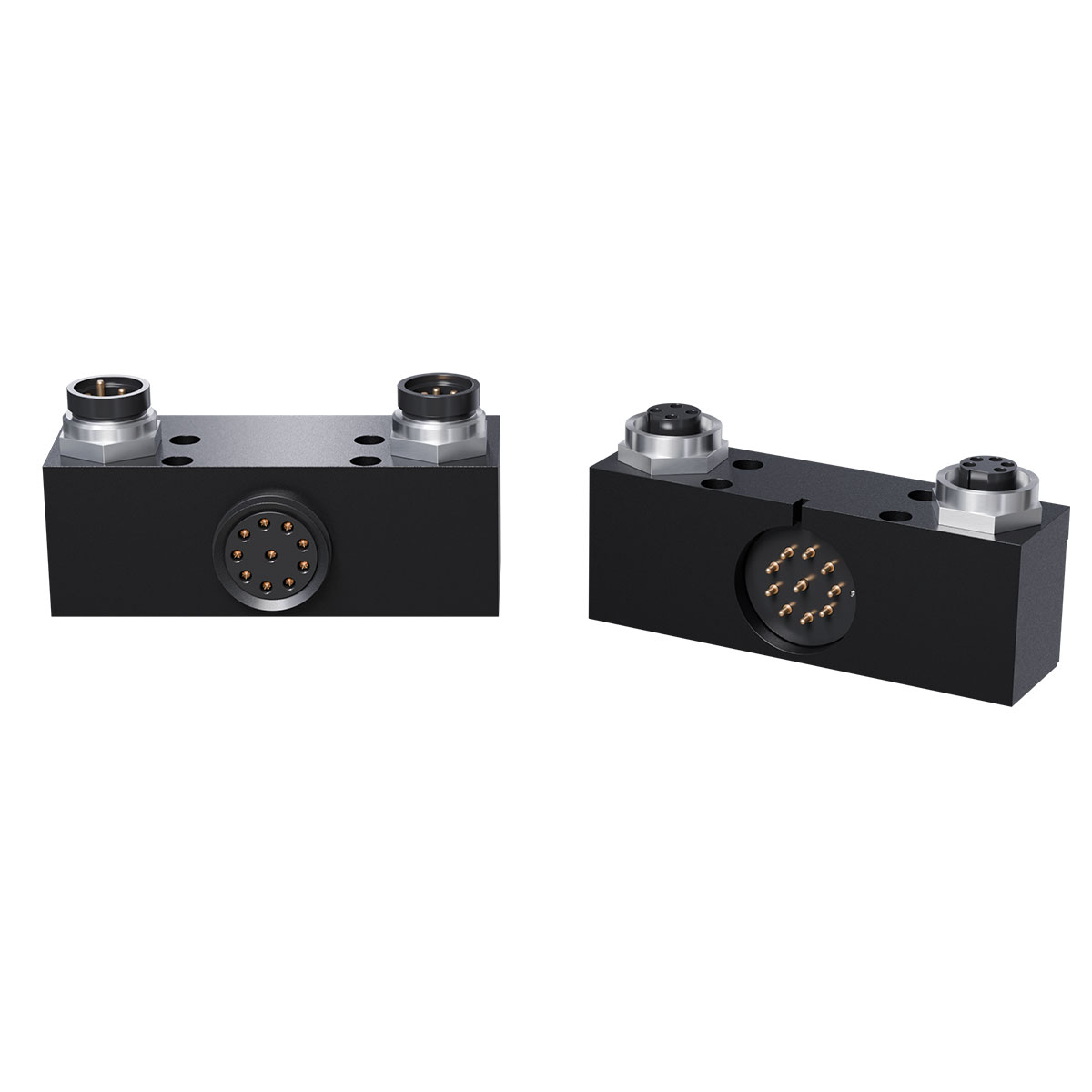

- Electrical module to pass DeviceNet, bus, and auxiliary power connections.
- ODVA Standard mini-fast 4- and 5-pin connectors.
- Direct pass-through connections.
- NOTE: TD module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
- When used on the QC-110, slight possibility that the air supply fittings will hit the edge of the TD module. Please consult an ATI Account Manager for more information.
Materials
- Anodized aluminum housing
- Rhodium-plated spring and contact pins
- Nitrile seals.
| Specification | Value |
|---|---|
| Electrical Rating | 5 Amp/24V |
| Master Side Weight | 0.63 kg |
| Tool Side Weight | 0.45 kg |
| Number of Total Pins | 10 |
| Pins Description | |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Signal Type |
- Filter by Type
- Drawings
| Download | Download Type | Language |
|---|---|---|
| TD Module Drawing | Drawings | English |
- Filter by Part Number
- 9120-TD-M
- 9120-TD-T
| Part Number | Description | ||
|---|---|---|---|
 |
9120-TD-M | 10-pin, 5 Amp/24V, pass-through DeviceNet and Aux power module |
|
|
|
9120-TD-T | 10-pin, 5 Amp/24V, pass-through DeviceNet and Aux power module |
|
