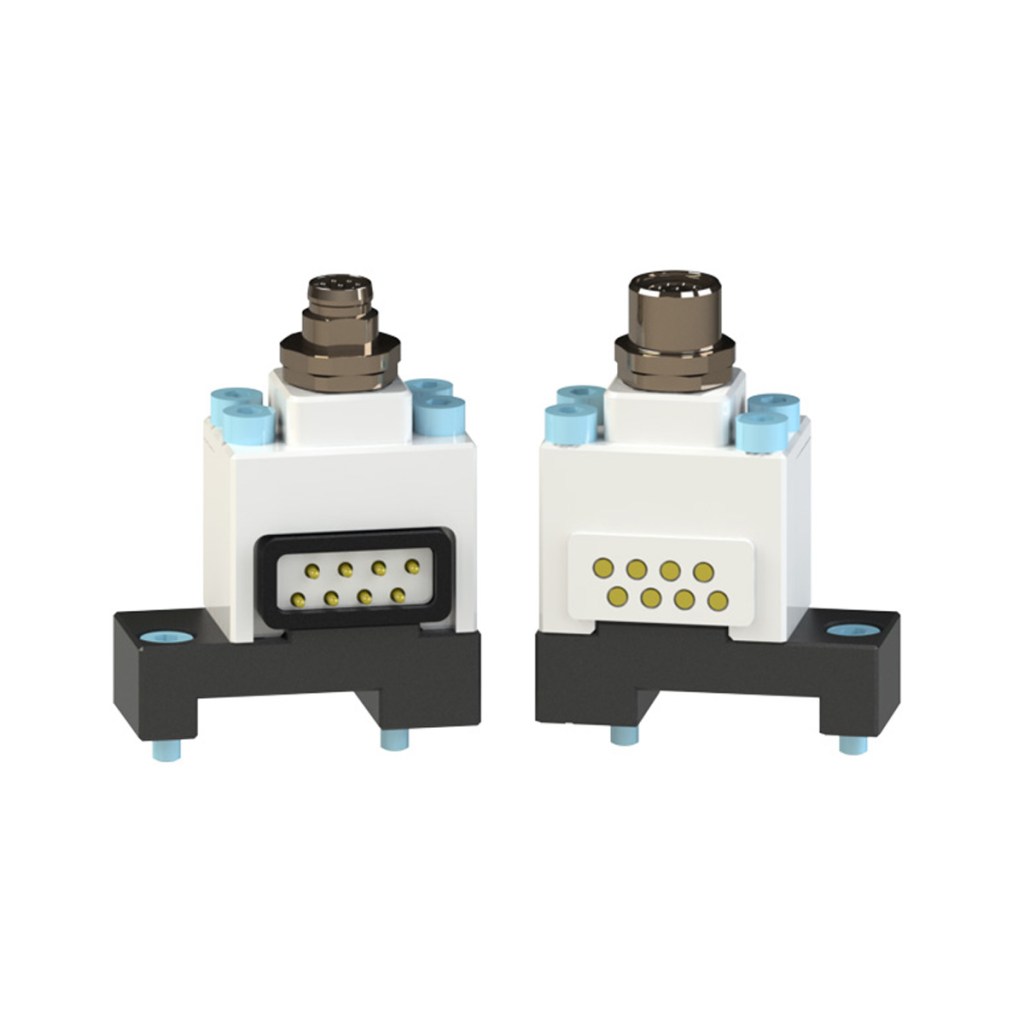

Product Features
- 8-Pin.
- Discrete pass-through electrical module.
- M8 connector.
- 1.5 Amp/30VAC.
- M8-005 with adapter to mount to QC-11.
| Specification | Value |
|---|---|
| Electrical Rating | 1.5 Amp/30VAC |
| Master Side Weight | 0.034 kg |
| Tool Side Weight | 0.034 kg |
| Number of Total Pins | 8 |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
- Filter by Type
- Drawings
| Download | Download Type | Language |
|---|---|---|
| M8-011 Module Drawing | Drawings | English |
| Download | Description |
|---|---|
| 9120-M8M-011 | 1.5A/30VAC Electrical module with 8-Pin M8 Connector – Master for QC-11 |
| 9120-M8T-011 | 1.5A/30VAC Electrical module with 8-Pin M8 Connector – Tool for QC-11 |
- Filter by Part Number
- 9120-M8M-011
- 9120-M8T-011
| Part Number | Description | ||
|---|---|---|---|
 |
9120-M8M-011 | 8-Pin Discrete Pass-through Electrical Module, QC-11, M8 connector, 1.5 Amp/30VAC – Master side |
|
|
|
9120-M8T-011 | 8-Pin Discrete Pass-through Electrical Module, QC-11, M8 connector, 1.5 Amp/30VAC – Tool side |
|
