Product Features
Features

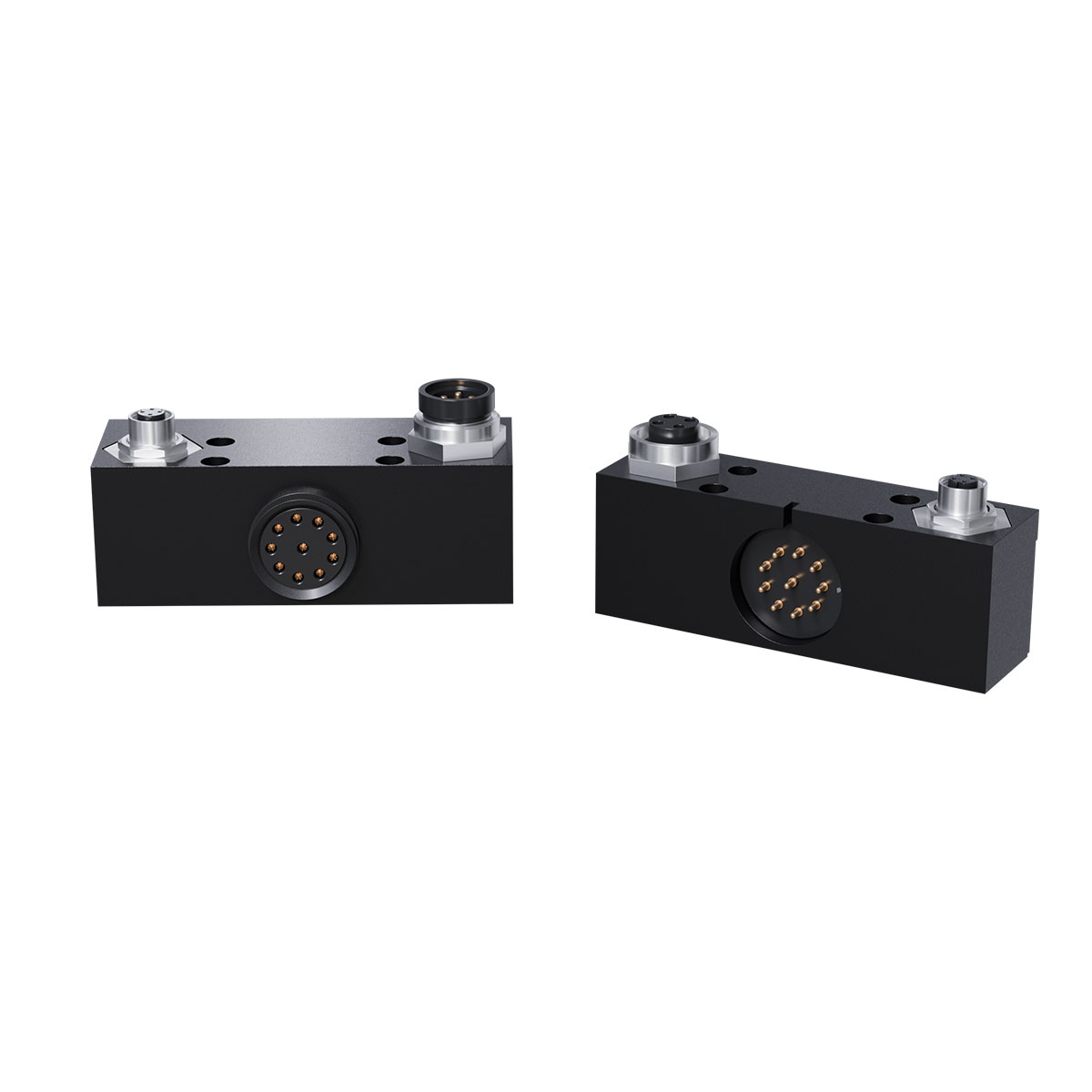

- Electrical module to pass CAT5e, 10/100-Mbit Ethernet signals and Auxiliary Power connections.
- Industry-standard female M12, 4-pin D-coded Ethernet connector.
- Usable for EtherNet/IP and PROFINET pass-through.
- NOTE: TE module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
- NOTE: When used on the QC-110, there is a slight possibility that the air supply fittings will hit the edge of the TE module. Please consult an ATI Account Manager for more information.
Materials
- Anodized aluminum housing
- Rhodium-plated spring and contact pins
- Nitrile seals.
| Specification | Value |
|---|---|
| Electrical Rating |
Ethernet Circuit – 2 Amp/60VAC max. Auxiliary Power Circuit – 5 Amp/600VAC max. |
| Master Side Weight | 0.49 kg |
| Tool Side Weight | 0.37 kg |
| Number of Total Pins | 8 |
| Pins Description | |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Signal Type |
| Download | Description |
|---|---|
| 9120-TE-M | Ethernet Pass Through Master module with connectors for Ethernet and Aux Power |
| 9120-TE-T | Ethernet Pass Through Tool module with connectors for Ethernet and Aux Power |
| 9120-TES-T | Ethernet Pass-Through Tool Module with straight connectors for Ethernet and Aux Power |
| 9120-TES-M | Axial orientation Ethernet Pass Through module with connectors for Ethernet and Aux Power |
- Filter by Part Number
- 9120-TE-M
- 9120-TES-M
- 9120-TES-T
- 9120-TE-T
| Part Number | Description | ||
|---|---|---|---|
 |
9120-TE-M | Ethernet Pass-through Module with connectors for Ethernet and Aux Power |
|
|
|
9120-TES-M | Ethernet Pass-through Module with connectors for Ethernet and Aux Power |
|
|
|
9120-TES-T | Ethernet Pass-through Module with connectors for Ethernet and Aux Power |
|
|
|
9120-TE-T | Ethernet Pass-through Module with connectors for Ethernet and Aux Power |
|
