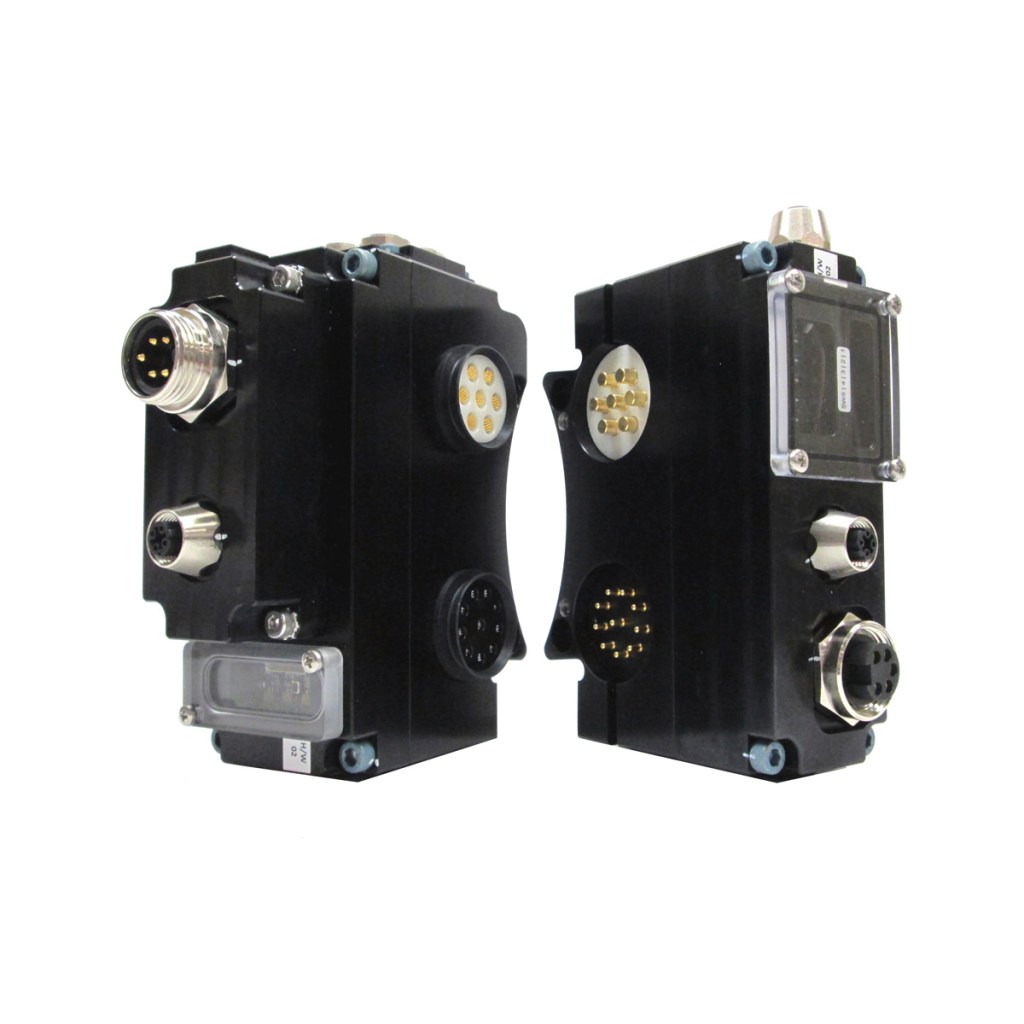

Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules: VL1

Features

• Enable the customer to control and communicate with the Tool Changer through a network using an EtherCAT interface.
• Control of the Tool Changer is realized through the Master along with the reporting of various Tool Changer I/O.
• The Tool modules supports Tool-ID reported through the Master and functions as a pass-through for EtherCAT network and power to downstream equipment.
• Supports the use of an integrated single or double solenoid valve which is provided on the valve adapter module for Latch/Unlatch control of the Tool Changer.
• In addition to supporting the standard Tool Changer input signals (Locked, Unlocked, and Ready-to-Lock proximity sensors) the modules also support advanced diagnostic and fault reporting.
• A standard 5-Pin Minifast connector is provided on the Master and Tool modules for interfacing with Auxiliary Power.
• A standard M12 D-Coded 4-Pin connector is provided on the Master and Tool modules for interfacing with EtherCAT.
• When the Tool Changer is coupled, the Master and Tool modules pass signals via a spring-loaded pin block.
• A flexible boot surrounds the pin block to seal the connection from moisture and liquid while coupled.
• The modules are designed with a Safety circuit to allow the Tool Changer to be operated in the safest manner possible. To avoid unintentional Tool release, the power for the unlatch valve is routed through a safety switch connector. A safety switch must be connected to support this function.

Materials

• Anodized aluminum housing
• Precious-metal-plated spring and contact pins
• Nitrile seals.
