Product Features
Features
- Integrated, managed Ethernet switch supports EtherNet/IP Quick Connect and DHCP functionality.
- Integrated web server for Tool Changer communication configuration and Ethernet switch management.
- M12 D-coded connectors for Ethernet communication on Master and Tool.
- 4-Pin Mini (7/8) connector for Input/Logic and Output/valve power pass-through.
- ATI’s Arc Prevention Circuit (patent pending) protects all electrical power contacts against reduced service life caused by high inrush current during coupling/uncoupling.
- Internal pin block for valve electrical connections. (Arc Prevention applied to Input/Logic and Output/valve power, as well as the Power associated to ATI’s TSI circuit.)
- Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a RFID-based, non-contact safety switch will allow the integrated solenoid valve to uncouple the Tool Changer only when the Tool is in the Tool Stand.
- Lock, Unlock, and Ready-to-Lock (RTL) sensing with LED cables on the Master.
- 5 independent Tool-ID switches supporting up to 99999 unique tools.
Materials
- Anodized aluminum housing
- Precious-metal-plated spring and contact pin
- Nitrile seals
| Specification | Value |
|---|---|
| Electrical Rating | Pass-through Power – 5 Amp/24VDC max. |
| Master Side Weight | 1.00 kg |
| Tool Side Weight | 0.59 kg |
| Number of Total Pins | |
| Pins Description | |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Signal Type | Ethernet/IP |
| Download | Description |
|---|---|

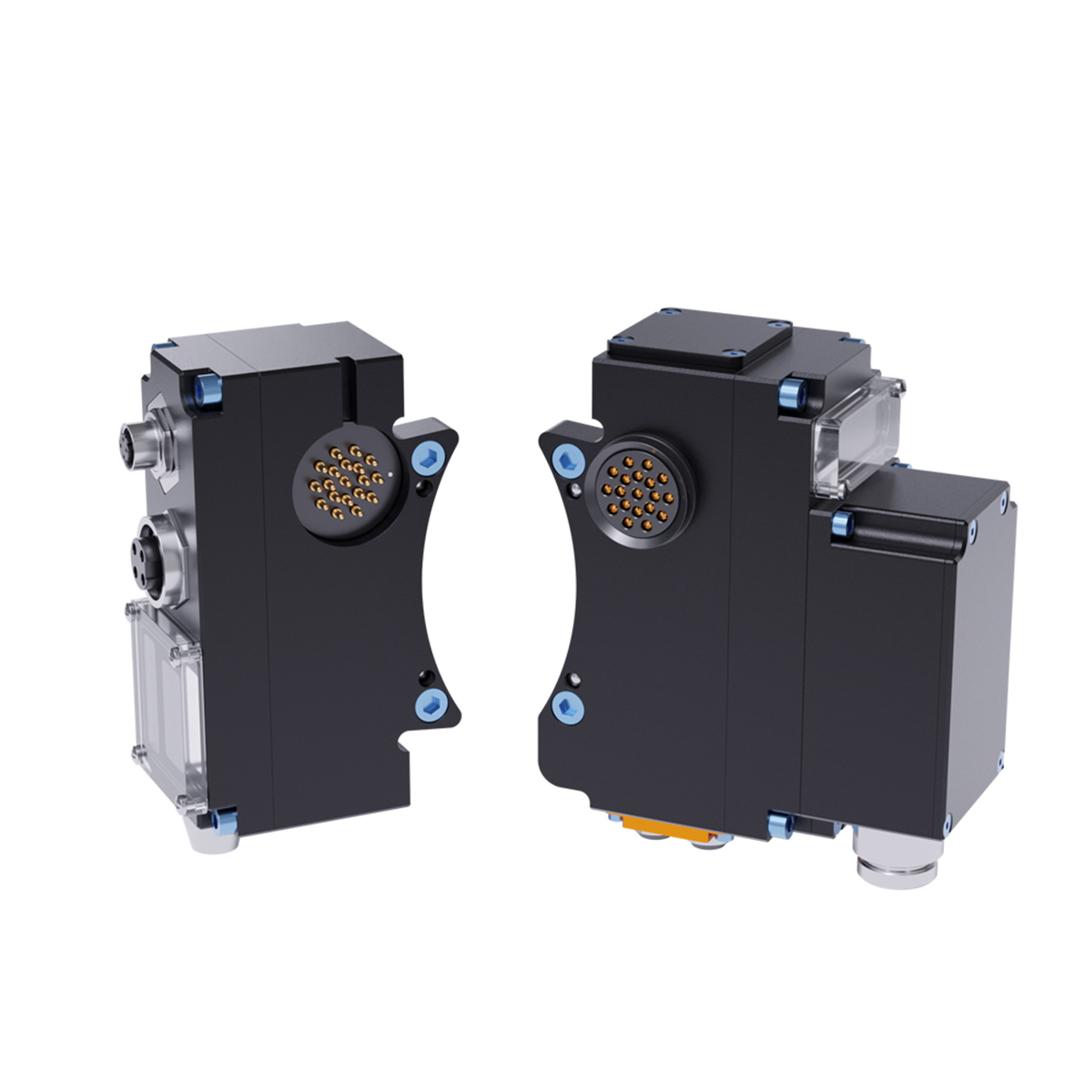

| 9121-DKP-T | DKP Ethernet/IP Tool Module |
| 9121-DKP-M | DKP EtherNet/IP Master Module |
- Filter by Part Number
- 9121-DKP-M
- 9121-DKP-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-DKP-M | EtherNet/IP Module with integrated Ethernet switch, supports DHCP functionality and EtherNet/IP Quick Connect, Input and Aux. Power pass-through, TSI on Tool. M12 D-coded Female Connector for Ethernet communication, Mini 4-Pin Male Connector for Output, Input and Logic Power. Lock, Unlock, and RTL sensing with LED cables on the Master and Tool-ID from the Tool module are also supported. The Master module designed with RTL bypass option. Arc Prevention Circuit applied to Aux Power (Switched and Unswitched) and to TSI Input Power – Master side |
|
|
|
9121-DKP-T | EtherNet/IP Module supports five independent 0-9 Tool-ID switches through the Master module, Ethernet port and Aux. Power pass-through, TSI on Tool. M12 D-coded Female Connector for Ethernet communication, Mini 4-Pin Female Connector for Output, Input and Logic Power, M12 4-Pin Female Connector provided to support TSI on Tool – Tool side |
|
