Fluid/Air Module: FH14

Fluid/Air Module: FH14

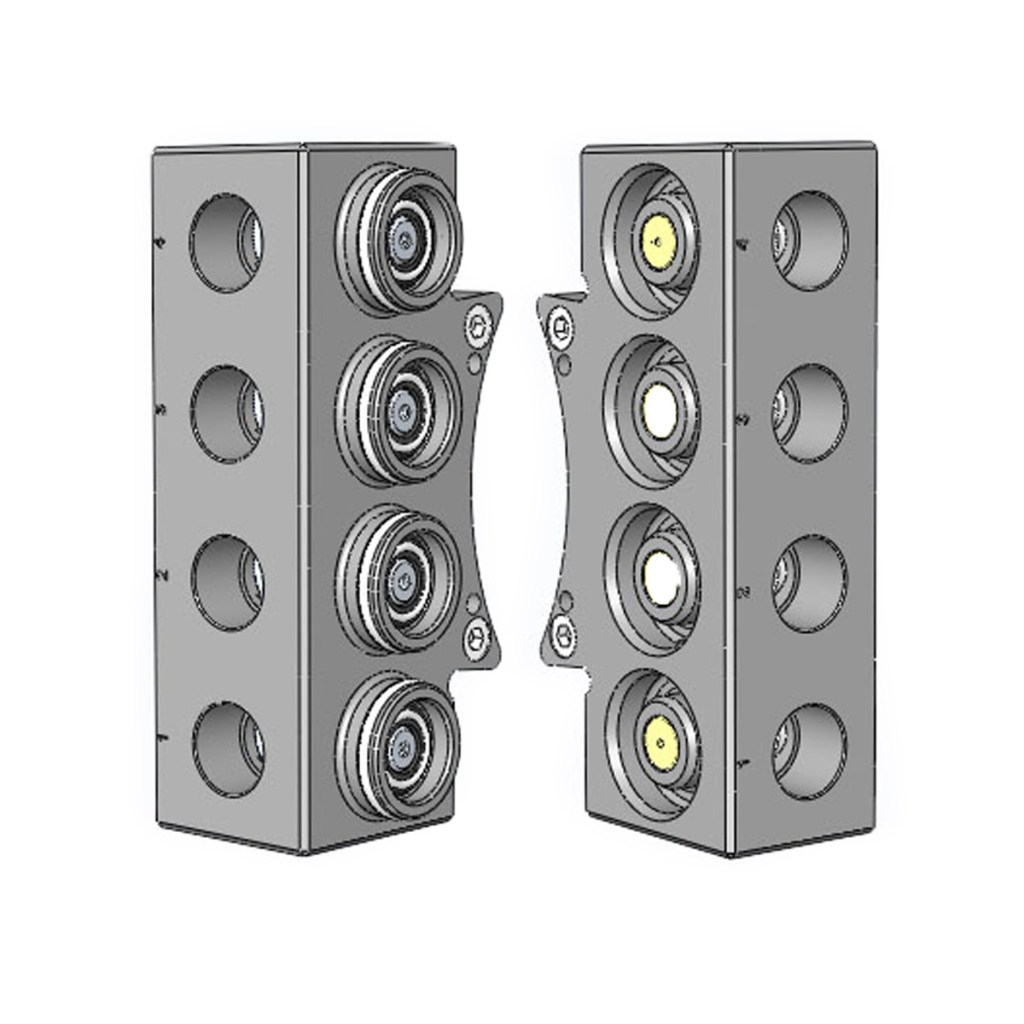

Stainless Steel Fluid/Air Module with (4) 1/2 Rc self-sealing ports, 3/8 Valve components, Nipple port with radial seal on Master, C’bore for Nipple port on Tool

View all features
Model Number: FH14

Tool Changer Modules
Air tool changer utility modules

Air Modules: AA2

Tool Changer Modules
Air tool changer utility modules

Air Modules: AB2

Tool Changer Modules
Air tool changer utility modules

Air Modules: AC2

Tool Changer Modules
Air tool changer utility modules

Air Modules: AD2

Product Features Specifications Documents & Downloads 3D CAD Models Components

Product Features

Features

  • FH14 provides fluid/air service to Master and Tool plates.
  • (4) self-sealing ports on FH12 Master and Tool side.
  • 1/2 Rc self-sealing ports for customer interface.
  • Nipple port feature with radial seal.
  • FH14 module housings are 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

Materials

  • Stainless steel housings
  • Buna-N seals
Specification Value
Flow Rating 1.6
Master Side Weight 2.90 kg
Tool Side Weight 2.27 kg
Operational Temperature Range -28.9 °C to 65.6 °C
Utility Type Fluid/Air
Download Download Type Language
FH14 Module Drawing Drawings English
FH14 Fluid/Air Module Manual Manuals English
Download Description
9121-FH14-M Fluid/Air Module with (4) 1/2 Rc Self-Sealing Ports, 3/8 Valve Components, Nipple Port with Radial Seal, Master Side.
9121-FH14-T Fluid/Air Module with (4) 1/2 Rc Self-Sealing Ports, 3/8 Valve Components, C-Bore for Nipple Port, Tool Side
Part Number Description
Tool stand 9121-FH14-M Stainless Steel Fluid/Air Module with (4) 1/2 Rc self-sealing ports, 3/8 Valve components, Nipple port with radial seal, Master side
Tool stand 9121-FH14-T Stainless Steel Fluid/Air Module with (4) 1/2 Rc Self-sealing ports, 3/8 Valve components, C-bore for Nipple port, Tool side
