Integrated Hook Module: NAx

Integrated hook tool changer utility modules

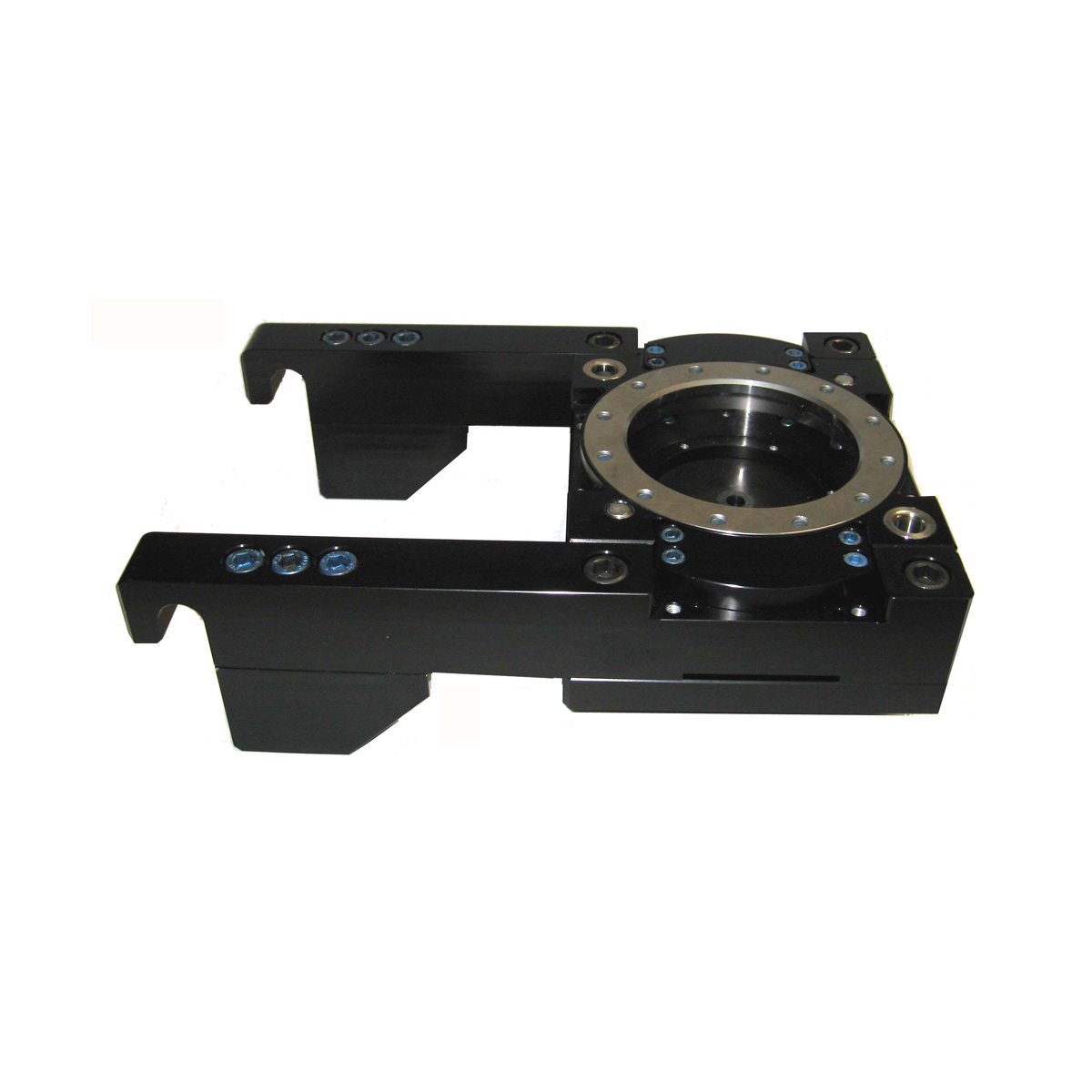

Integrated Hook Module: NAx

Tool Stand Integrated Hook Module, Right Hand (NA2), Left Hand (NA3), Right Hand, 2″ Longer (NA4), and Left Hand, 2″ Longer (NA5) – Tool side only
Reduced stack height for tool drop off.
High durability.
Compact size.
Easy robot programming.
Highly customizable.

View all features

Product Features

Documents & Downloads

Product Features

Features

Tool Stand Integrated Hook Module, Right Hand (NA2), Left Hand (NA3), Right Hand, 2″ Longer (NA4), and Left Hand, 2″ Longer (NA5) – Tool side only
Reduced stack height for tool drop off.
High durability.
Compact size.
Easy robot programming.
Highly customizable.

Materials

Hooks: Hardened steel, black oxide
Arms: T6 aluminum, black anodize

Specification	Value
Master Side Weight
Tool Side Weight
Operational Temperature Range	-28.9 °C to 65.6 °C
Type	Integrated Hook Module

Download	Download Type	Language
Large Tool Stand Assemblies, Hook-style, QC-310	Drawings	English
QC-210 Tool with NA4/NA5 Hook Arms	Drawings	English
NA2/3 Hook Arm Safe Zone Customer Reference	Manuals	English
TSL Tool Stand Product Manual	Manuals	English

Download	Description
9121-NA2-T	QC-210 Tool Hook Module, Right Side
9121-NA3-T	QC-210 Tool Hook Module, Left Side

	Part Number	Description
	9121-NA2-T	QC-210 Tool Hook Module, right side
	9121-NA3-T	QC-210 Tool Hook Module, left side
	9121-NA4-T	Tool Stand Integrated Hook Module, Right Hand, 2″ Longer
	9121-NA5-T	Tool Stand Integrated Hook Module, Left Hand, 2″ Longer
