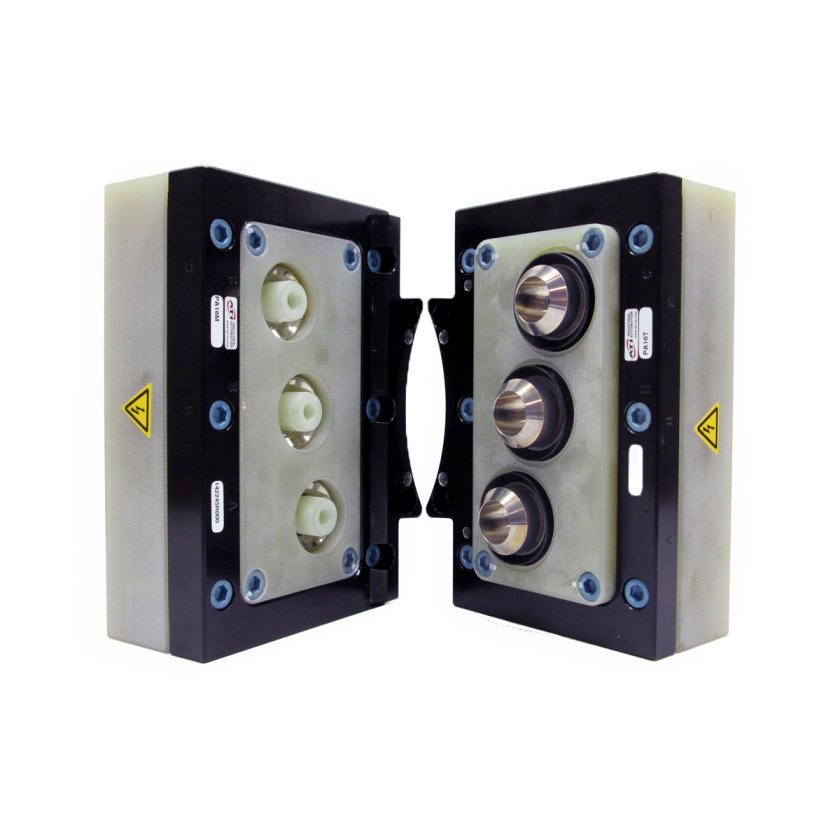

Primary Current Modules: PA16

(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module

Product Features

Designed to carry high current from a power supply to customer tooling using #2AWG (or 35mm2) cable.
Three (3) rhodium-plated copper contacts, each capable of carrying 200 Amps when coupled.
Voltage should not exceed 600 Volts.
Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
Mating conical surfaces provide a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
Power to be disconnected and discharged prior to tool changes. Module is not a switch.
Contact tips easily replaced, if required.
Recessed and shrouded Master-side contacts prevent accidental human contact.
Center pin extended for first mate/last break protection.
1 ¼ NPT, 1 ½ NPT, PG29, and PG36 fitting plates currently available.
Offset contact bases for use with thick jacket #2AWG cable.

Specification	Value
Electrical Rating	200 Amp/600V @ 100% Duty Cycle
Master Side Weight	1.32 kg
Tool Side Weight	1.27 kg
Number of Total Pins	3
Pins Description
Operational Temperature Range	-28.9 °C to 65.6 °C
Type	Primary Current Modules

	Part Number	Description
	9005-20-1238	1-1/4 NPT Fitting Plate Kit
	9005-20-1239	1-1/2 NPT Fitting Plate Kit
	9005-20-1274	PG29 Fitting Plate Kit
	9005-20-1528	PG36 Fitting Plate Kit
	9005-20-1856	1-1/4 NPT Angled Fitting Plate Kit
	9005-20-8849	Non-conductive 3x M20 Fitting Plate Kit with Cord Grips, 5-13mm cable range

	Part Number	Description
	9121-PA16-M	(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module – Master side
	9121-PA16-T	(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module – Tool side
