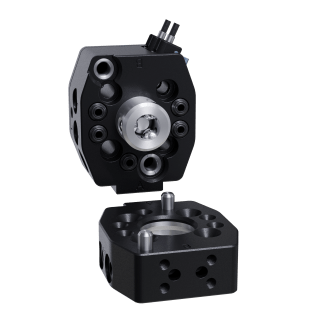

QC-7

Product Features

(5) M5 or #10-32 Integrated air pass thrus ports in a compact 281 gram package
No-Touch locking technology allows up to 1.5 mm plate separation when locking.
Patented Fail-Safe locking mechanism design results in low force acting on the piston.

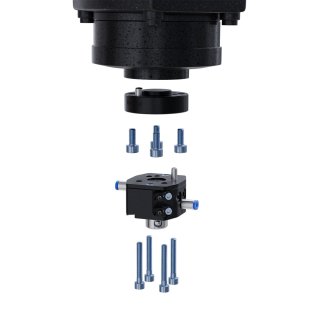

Direct mounting to ISO 9409-1-31.5-4-M5 robot wrists to minimize stack height. Also supports additional mounting patterns
All locking parts are made of Rc58 stainless steel.
Two (2) flats available to mount electrical modules for increased functionality
Alignment features in Tool Changer body for greater torsional strength and better serviceability.

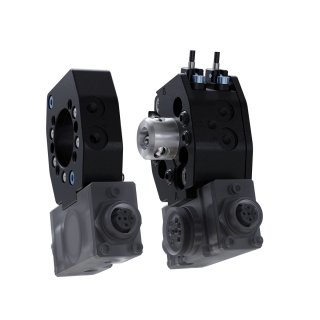

Integrated Lock/Unlock sensing to communicate status. No SIP required.
Configurable pneumatic ports in QC Tool for radial or axial pass-through.
Available with Slotted Tool for light-duty, economical tool storage.
Supplied with lock/unlock air fittings for 4mm (5/32″) tubing.

Specification	Value
Locking Force @ 80 psi (5.5 bar)	980 N
Maximum Locking Distance	1.52 mm
Passthrough Port Sizes	(5) M5 or #10-32
Pneumatic Passthrough Port Quantity	5
Positional Repeatability	0.0102 mm

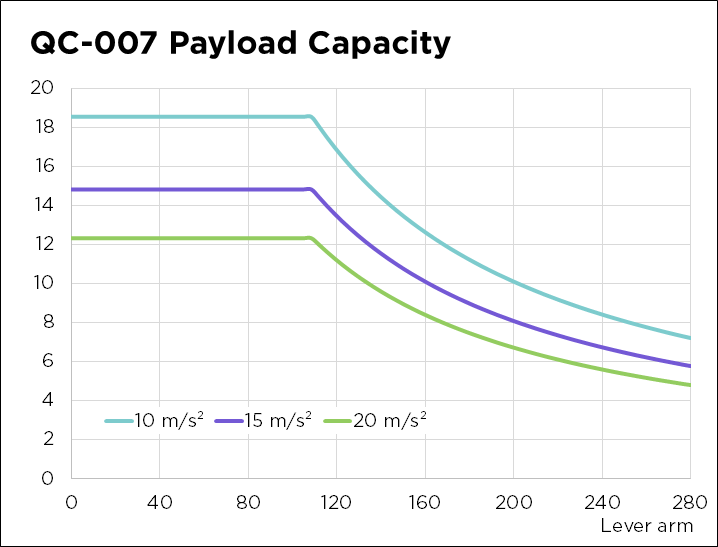

Suggested Payload Limit	16 kg
X/Y Static Moment Capacity	20.3 Nm
Z Static Moment Capacity	12.4 Nm
Master Side Weight	0.2 kg
Tool Side Weight	0.0816 kg
Weight When Coupled	0.281 kg
Actuation Type	Pneumatic
Robot Wrist Type	Standard
Color	Black
Port Threads	M5 Threads

Download	Download Type	Language
QC-7 Tool Changer Drawing	Drawings	English
QC-7 Tool Changer Drawing	Drawings	English
QC-7 Cobot Kit (FANUC CRX-10iA) Drawing	Drawings	English
QC-7 Cobot Kit (General ISO 50) Drawing	Drawings	English
QC-7 Cobot Kit (UR) Drawing	Drawings	English
Tool Changer Setup and Programing Guide for Ure	Manuals	English
QC-7 Series Base Tool Changer with Proximity Sensors Manual	Manuals	English
CRX Plugin Software Manual	Manuals	English

	Part Number	Description
	9120-TSS-TH-11391	QC-7 Tool Hook Module

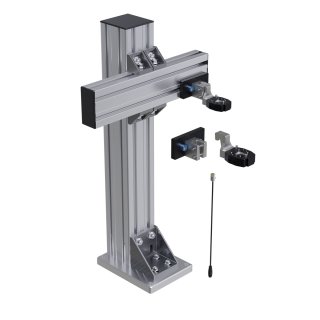

	9120-TSS-MMS-11345	TSS Slotted Tool Nest for QC-7
	9120-TSS-VBB-7963	TSS Vertical Tooling Interface Plate – Blank
