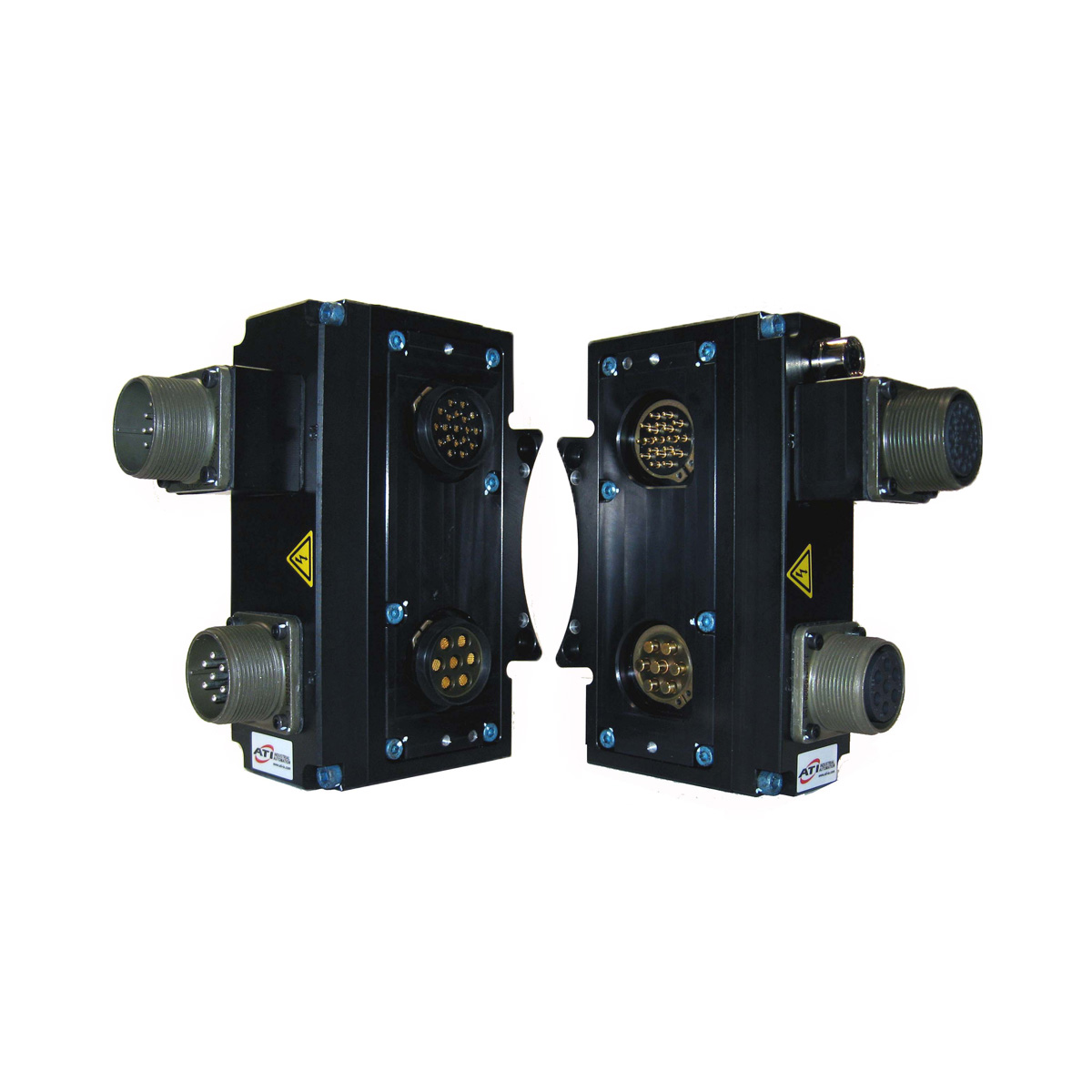

Product Features
Features
- Passes electrical power and signal connections to a transgun servomotor.
- Power and signal cables can be routed separately.
- Power and signal circuits are electrically isolated both from each other and the Tool Changer.
- The wiring has EMI/RF shielding to protect it from noise.
- No-Touch contacts on Master.
- Moisture and dust seals.
- Extended center pin for first contact.
- Battery Backup connection on Tool module.
Materials
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Ultem® and Delrin® blocks.
| Specification | Value |
|---|---|
| Electrical Rating |
Motor Current – 13 Amp, 500VAC/700VDC max. Encoder Current – 3 Amp, 250VAC/30VDC max. |
| Master Side Weight | 1.20 kg |
| Tool Side Weight | 1.16 kg |
| Number of Total Pins | 26 |
| Pins Description |
Power – 7 Signal – 19 |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Download | Description |
|---|---|
| 9121-EF17-M | Fanuc Servo master module with 7-pin Motor Power/Brk Connector and battery backup |
| 9121-EF17-T | Fanuc Servo tool module with 7-pin Motor Power/Brk Connector and battery backup 3 |
- Filter by Part Number
- 9121-EF17-M
- 9121-EF17-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-EF17-M | Fanuc Servo Module with 7-pin Motor Power/Brk Connector and Battery Backup – Master side |
|
|
|
9121-EF17-T | Fanuc Servo Module with 7-pin Motor Power/Brk Connector and Battery Backup – Tool side |
|
