Product Features

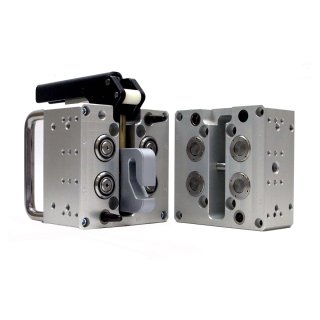

- Manual coupler connects multiple utilities at one time.
- (3) Mounting flats attach standard ATI utility modules.
- Compact body size
- Sensors available to detect tool side presence and locked state.
- Hardened stainless steel alignment pins.
- Patented latch draws in utilities.
- (4) 3/8″ axial checked ports integrated in body.
- Rated Life: 30,000 cycles.
| Specification | Value |
|---|---|
| Compliance Type | None |
| Locking Type | Manual |
| Minimum Coupling Force | |
| Minimum Operating Temperature | -28.9 °C |
| Maximum Operating Temperature | 65.6 °C |
| Module Flats | 3 |
| Module Type | Medium |
| Number of Ports | 4 |
| Port Type | Checked |
| Weight | 3.1 kg |
| X/Y Compliance Range | |
| Z Compliance |
| Download | Description |
|---|---|
| UC-GH1 Master | Manual Utility Coupler with (4) 3/8u201d NPT Checked Ports, Axial |
| UC-GH1 Tool | Manual Utility Coupler Base Assembly, NPT |
