Product Features
Features

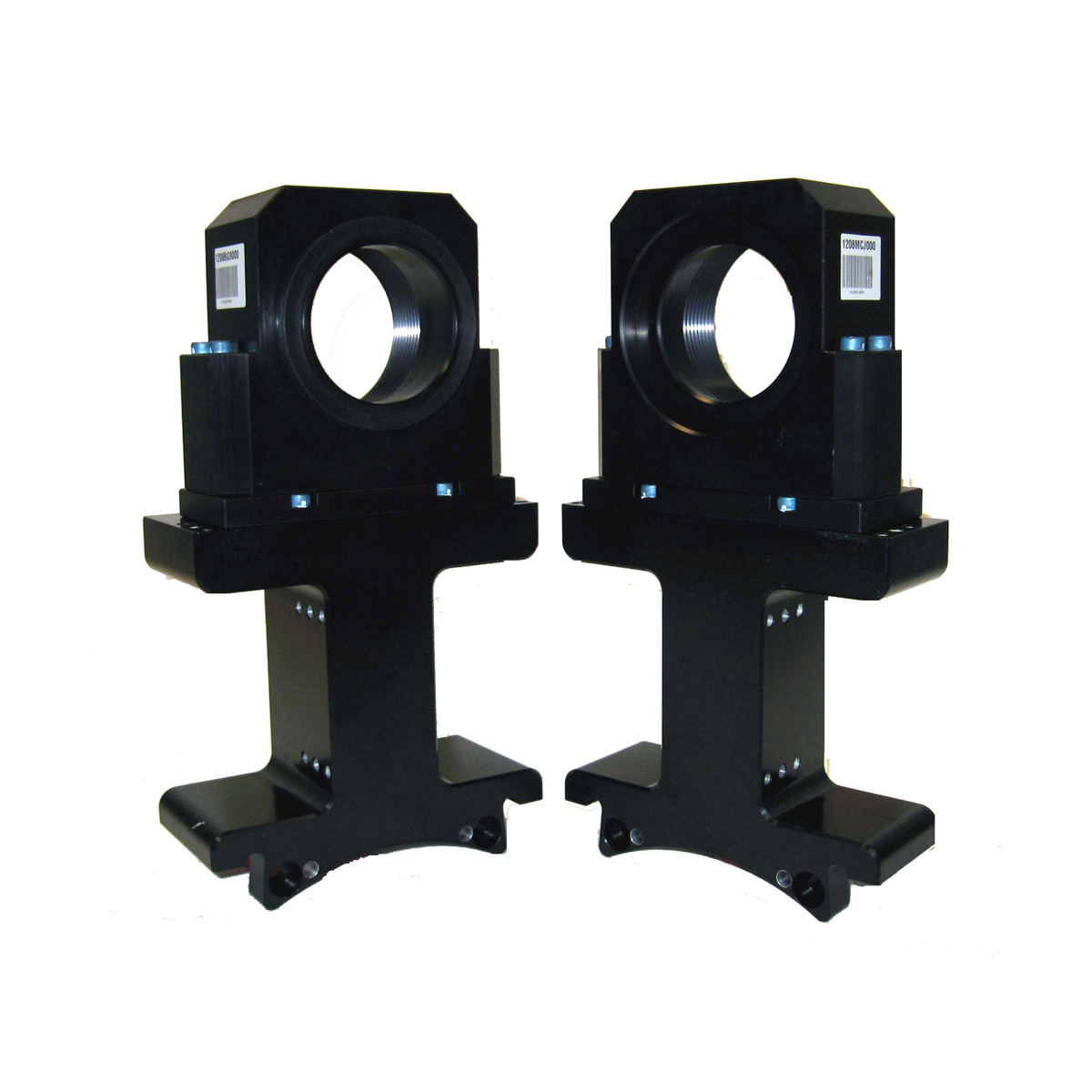

- Provides pass-through vacuum service.
- (1) 2″ NPT port.
- Axial mount customer interface to space 163mm from QC.
Materials
- Anodized aluminum housings
- Nitrile rubber seals
| Specification | Value |
|---|---|
| Flow Rating | |
| Master Side Weight | 1.50 kg |
| Tool Side Weight | 1.32 kg |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Utility Type | Vacuum/Air |
| Download | Description |
|---|
- Filter by Part Number
- 9121-AV9-M
- 9121-AV9-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-AV9-M | Vacuum Pass-through Module with (1) 2″ NPT axial port spaced 163mm from QC – Master side |
|
|
|
9121-AV9-T | Vacuum Pass-through Module with (1) 2″ NPT axial port spaced 163mm from QC – Tool side |
|
