Product Features
Features

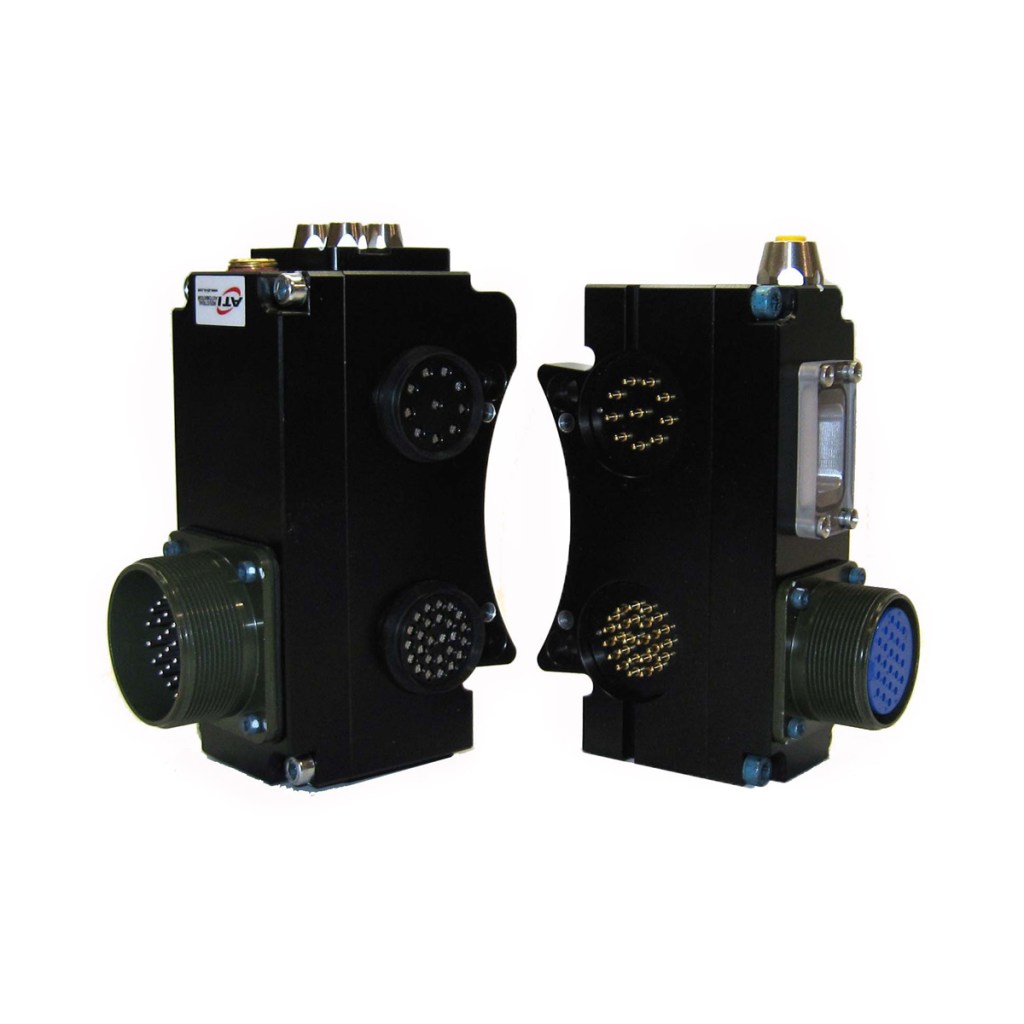

- The Discrete Signal Integrated Valve module allows for control of the Tool Changer and discrete signal pass-through to the End-of-Arm Tooling.
- DDK, MS-style connector provided for customer interface.
- An integrated single or double solenoid valve (available on the Jxx valve adapter with pass-through module) controls the Tool Changer locking mechanism.
- Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs supported.
- Up to 22 pass-through signals available for customer use.
- A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
- Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
- Tool-ID (0-9) available.
- Compact design package.
Materials
- Aluminum housing and cover
- Clear polycarbonate window
- Precious-metal-plated contacts
- Nitrile seals
- Delrin pin block.
| Specification | Value |
|---|---|
| Electrical Rating |
Control signals – 24VDC Pass-through signals – 5 Amp/250V |
| Master Side Weight | 0.77 kg |
| Tool Side Weight | 0.66 kg |
| Number of Total Pins | |
| Pins Description | |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Signal Type |
| Download | Description |
|---|---|
| 9121-VB11-T | VB11 Tool Discrete Module Assembly |
| 9121-VB11-M | VB11 Master Discrete Module Assembly |
- Filter by Part Number
- 9121-VB11-M
- 9121-VB11-T
- 9121-VB13-T
| Part Number | Description | ||
|---|---|---|---|
 |
9121-VB11-M | Discrete Module, Supports L/U/R1/R2 PNP Sensors and Integrated Valve, 35-Pin DDK (MS Style) Connector, TSI on Tool, 0-9 Tool-ID, 22 Pass-Through – Master side |
|
|
|
9121-VB11-T | Discrete Module, 24-Pin Amphenol (MS-style) Connector, TSI on Tool, 0-9 Tool-ID, 22 Pass-through – Tool side |
|
|
|
9121-VB13-T | Discrete Module, 24-Pin Amphenol (MS Style) Connector, TSI on Tool, 0-99 Tool-ID, 18 Signal Pass-Through – Tool side |
|
