Product Features
Features

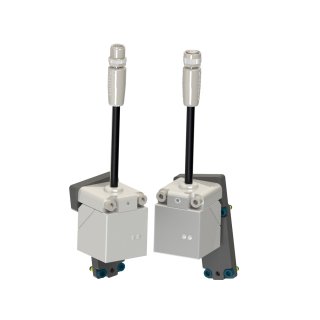

- Inductive Coupler provides non-contact transfer of electrical pass-through signals.
- Supports eight (8) 24VDC PNP signals for low-voltage circuits and common industrial I/O.
- IP67 rated for environmental protection in wet environments.
- Eliminates wear typically associated with high-cycle electrical couplings.
- M12 12-pin connector for common industrial interface.
- Mounts to many standard ATI Robotic Tool Changers.
Materials
- Thermoplastic inductive coupler housing.
- Anodized aluminum adapter bracket with SS screws.
| Specification | Value |
|---|---|
| Electrical Rating |
Tool side total output current – 500 mA Tool side total output voltage – 24VDC +/- 10% Master side required supply current – 1A Master side required supply voltage – 24VDC +/- 10% |
| Master Side Weight | 0.23 kg |
| Tool Side Weight | 0.23 kg |
| Number of Total Pins | 12 |
| Operational Temperature Range | -28.9 °C to 65.6 °C |
| Download | Description |
|---|---|
| 9120-NB8A-M | Balluff-Labeled Base Inductive Coupler Master Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Male M12 12-Pin Connector |
| 9120-NB8A-T | Balluff-Labeled Remote Inductive Coupler Tool Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Female M12 12-Pin Connector |
- Filter by Part Number
- 9120-NB8A-M
- 9120-NB8A-T
| Part Number | Description | ||
|---|---|---|---|
 |
9120-NB8A-M | Inductive Coupler Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Male M12 12-Pin Connector – Master Side |
|
|
|
9120-NB8A-T | Inductive Coupler Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Female M12 12-Pin Connector – Tool Side. |
|
