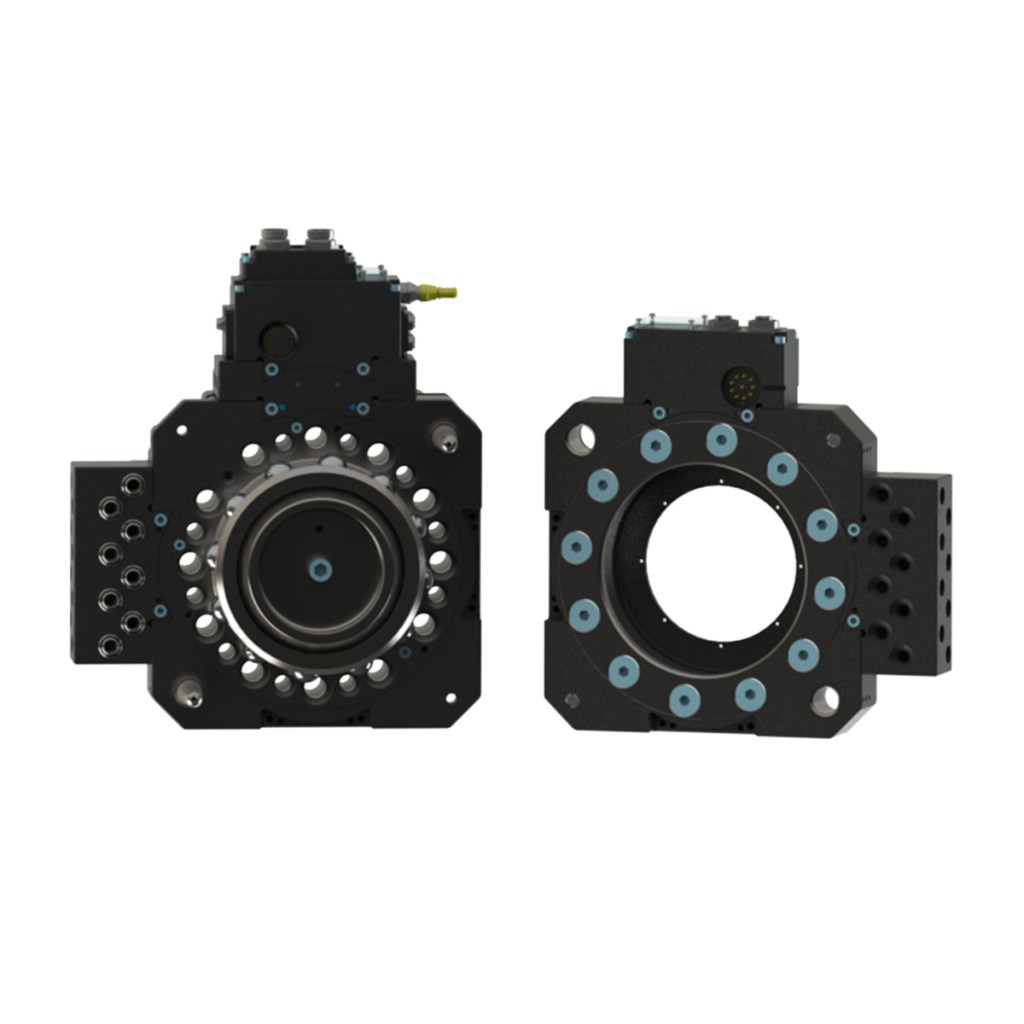

QC-510 Tool Changer

ATI Robotic Tool Changers enable fully automated end-effector exchange with secure locking, utility pass-through, and high repeatability. Engineered for harsh environments and high-cycle use, they boost uptime, flexibility, and productivity in robotic automation.

Modular Construction: High power, coolant, servo, communication, and discrete signal capabilities are built into separate modules making maintenance easy – increasing commonality and flexibility for the customer.
Ready sensors (2) detect when the Tool plate is within 0.06 inch (1.5 mm) of the Master plate, signaling ready-to-lock.
Patented Fail-Safe locking mechanism design results in low force acting on the piston.
Large piston diameter and outward ball travel increase moment capacity.
All locking parts are made of Rc58 stainless steel.

Product Features

Specifications

Documents & Downloads

3D CAD Models

Accessories

Product Features

Modular Construction: High power, coolant, servo, communication, and discrete signal capabilities are built into separate modules making maintenance easy – increasing commonality and flexibility for the customer.
Ready sensors (2) detect when the Tool plate is within 0.06 inch (1.5 mm) of the Master plate, signaling ready-to-lock.
Patented Fail-Safe locking mechanism design results in low force acting on the piston.
Large piston diameter and outward ball travel increase moment capacity.
All locking parts are made of Rc58 stainless steel.
Integrated Lock/Unlock sensing for safety.
Mounts directly to most 1000 kg robots (no SIP required).

Learn more about Tool Changers

Specification	Value
Locking Force @ 80 psi (5.5 bar)	62000 N
Maximum Locking Distance	2.54 mm
Positional Repeatability	0.0152 mm
Suggested Payload Limit	700 kg
X/Y Static Moment Capacity	4860 Nm
Z Static Moment Capacity	3500 Nm
Master Side Weight	19.4 kg
Tool Side Weight	8.64 kg
Weight When Coupled	28.1 kg
Actuation Type	Pneumatic
Robot Wrist Type	Standard
Color	Black

Download	Download Type	Language
QC-510 Tool Changer Drawing	Drawings	English
QC-510 Base Tool Changer Module Manual	Manuals	English

Download	Description
QC-510 Master	QC-510 Master
QC-510 Tool	QC-510 Tool
QC-510 Spacer	QC-510 Spacer, Two Piece Bolted Type

	Part Number	Description
	9005-20-1334	Race Cover subassembly kit for QC-310 (9121-310DT) and QC-510 (9121-510DT)
	JJ10	Dual Ledge Mount Adapter Module
	JJ16	Rail Style, Ledge Mount Adapter, 7-Positions
	JJ19	EN Rail Style, Ledge Mount Adapter, 4-Positions, 1″ longer version of the JJ13.
	JJ2	Adapter Assembly – Used to mount Single or Dual J16 pattern modules to QC
	JJ3	Single or Dual J16 Mounting Adapter Assembly (5″ Adapter width)
	JJ6	Spacer Module Adapter – Use opposite NA2/NA3 Tool Hooks
	JM2	Adapter Assembly – Used to mount PG0, PN2, or HA6 modules to QC
	JM4	Adapter Assembly for V300 Module
	Jxx-AIR-1	Jxx Air Adapters
	Jxx-AIR-2	Lock/Unlock Air Adapter with Lock/Unlock/RTL sensor inputs with stainless steel hardware.
	Jxx-VALVE-1	Jxx Valve Adapters-Dual Double Solenoid, Valve Pass-through, Prox & Pressure Sensors
	Jxx-VALVE-2	Jxx Valve Adapters with a Double Solenoid
	Jxx-VALVE-3	Jxx Valve Adapters with a Double Solenoid and Valve Pass Through
	Jxx-VALVE-4	Jxx Valve Adapters with a Single Solenoid
	Jxx-VALVE-5	Jxx Valve Adapters with a Single Solenoid and Valve Pass Through
	Jxx-VALVE-6	Valve Adapters with Double Solenoid with Valve Pass-Through and Pressure Switch
