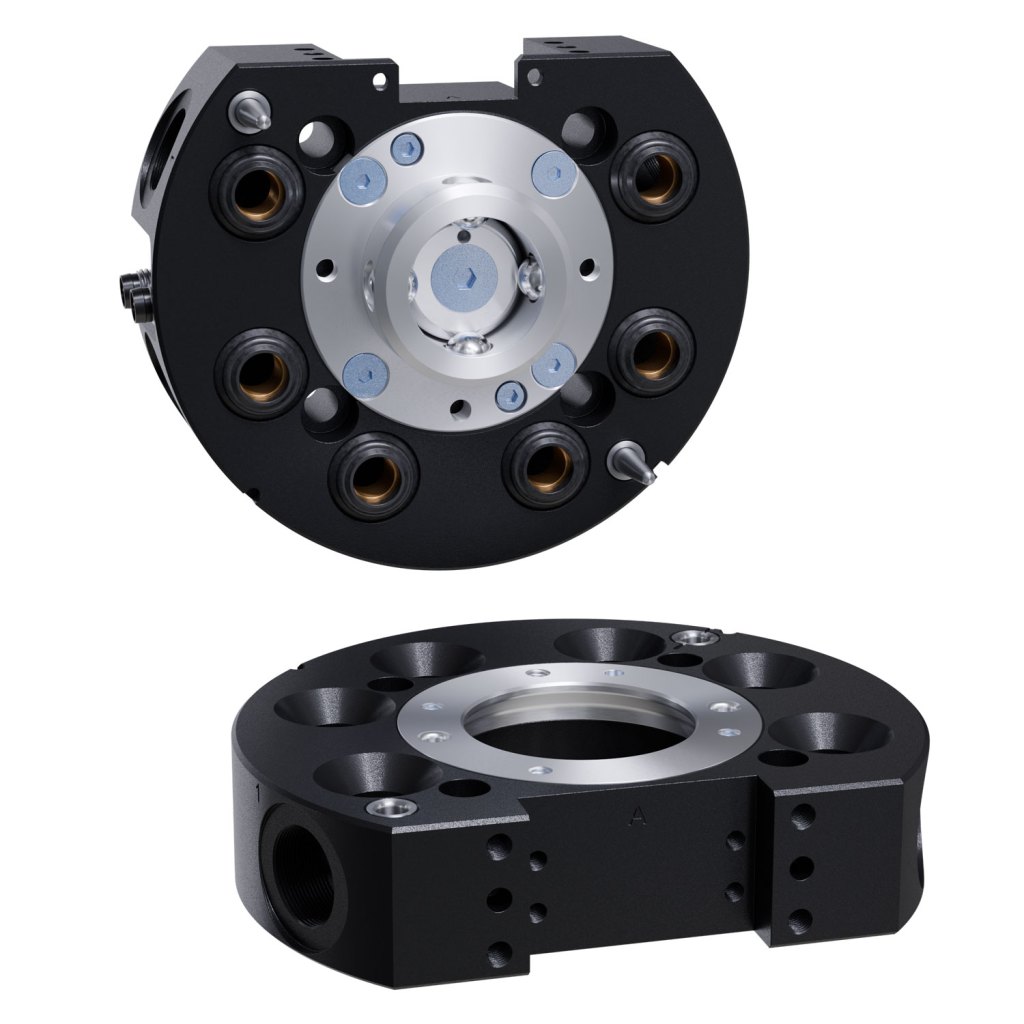

Product Features
- (6) 3/8 NPT Integrated air pass thrus ports in a 1.42 kg package
- Larger pneumatic pass thru ports allow for applications requiring greater air flow
- No-Touch locking technology allows up to 2.0 mm plate separation when locking.
- Patented Fail-Safe locking mechanism design results in low force acting on the piston.
- Supports multiple mounting patterns with interface plates
- All locking parts are made of Rc58 stainless steel.
- One (1) flat available to mount utility modules for increased functionality
- Alignment features in Tool Changer body for greater torsional strength and better serviceability.
- Features optional Lock/Unlock sensors.
| Specification | Value |
|---|---|
| Locking Force @ 80 psi (5.5 bar) | 2300 N |
| Maximum Locking Distance | 2.03 mm |
| Passthrough Port Sizes | (6) 3/8 NPT |
| Pneumatic Passthrough Port Quantity | 6 |
| Positional Repeatability | 0.0152 mm |
| Suggested Payload Limit | 25 kg |
| X/Y Static Moment Capacity | 56.5 Nm |
| Z Static Moment Capacity | 90.4 Nm |
| Master Side Weight | 0.866 kg |
| Tool Side Weight | 0.549 kg |
| Weight When Coupled | 1.42 kg |
| Actuation Type | Pneumatic |
| Robot Wrist Type | Standard |
| Color | Black |
| Port Threads | BSPP/G Threads |
- Filter by Part Number
- 9120-TSS-HBQ-9483
| Part Number | Description | ||
|---|---|---|---|
 |
9120-TSS-HBQ-9483 |
TSS Tooling Interface Plate for QC-20/21/22 – Blank |
|
